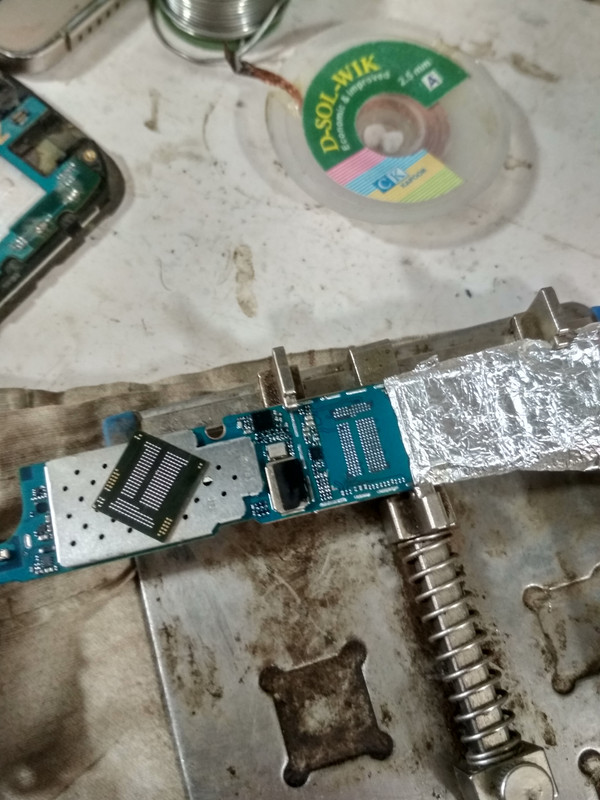

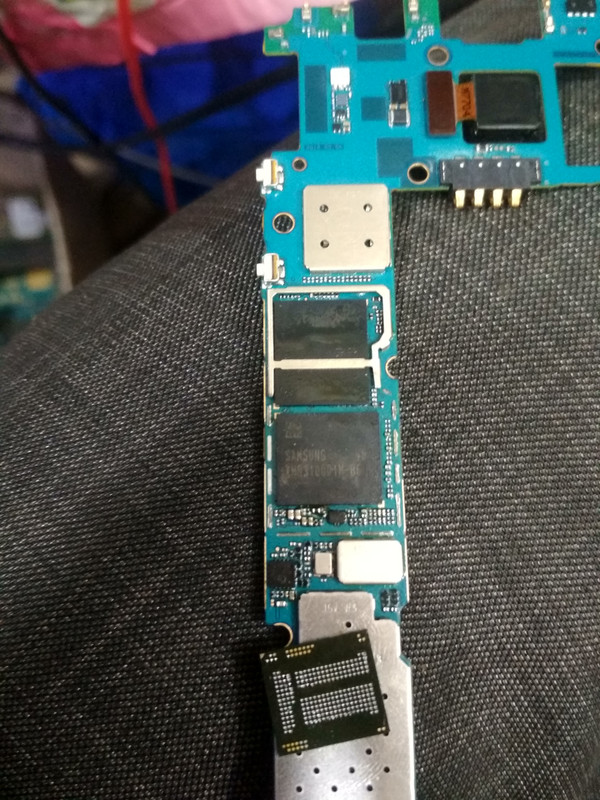

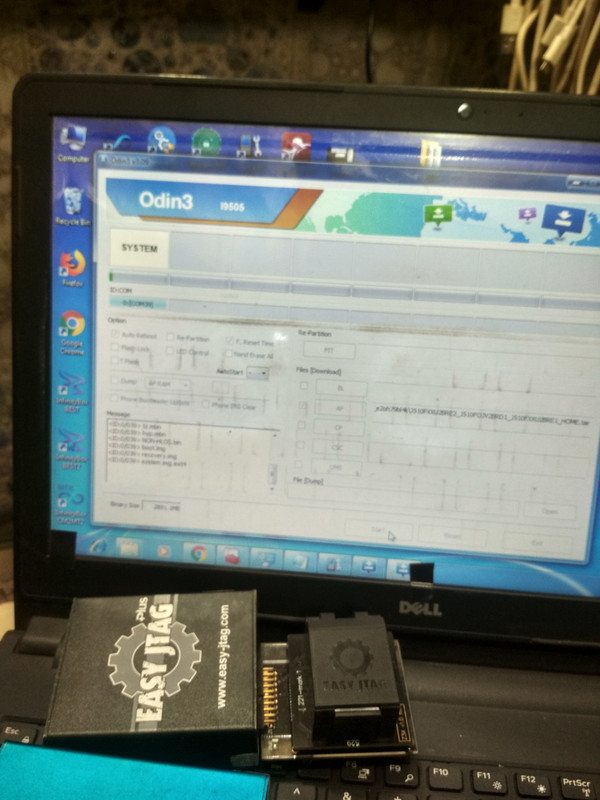

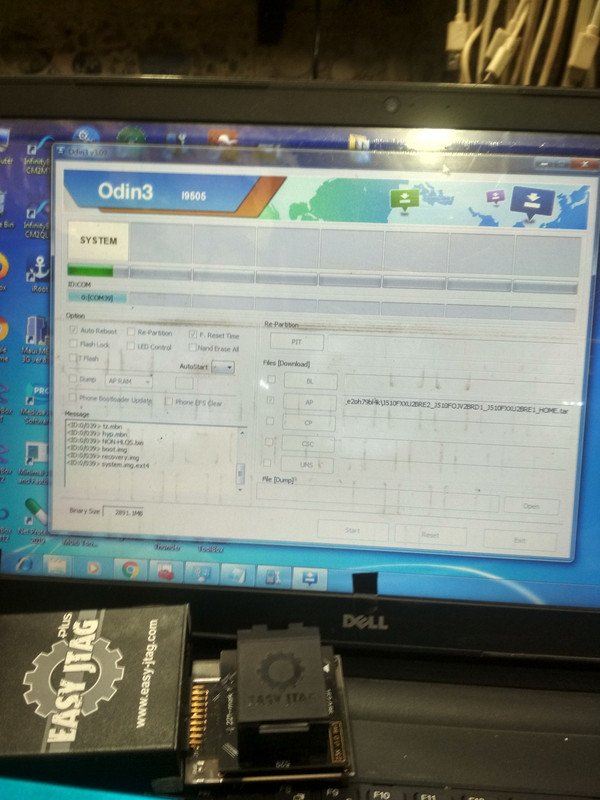

SAMSUNG J510F DEAD BOOT REPAIR CHANGE EMMC
Q313MB to R311MB
Model Settings:
Interface : eMMC
Voltage : 1.8V
Bus Mode : 1 bit
Bus speed : Auto
Connecting...
Device : Samsung eMMC R311MB
Page size : 512 B
Block size : 512 B
Block count : 30777344
Size : 14.68 GB (15028.00 MB)
---------------------------------------------------------------
CID Info
CID : 150100523331314D42006CA3D6B7C1AD
Manufacturer ID : 0X15
Device/BGA : BGA (Discrete embedded)
OEM/Application ID : 0X00
Product name : R311MB
Product revision : 0.0
Product serial number : (hex) 6CA3D6B7
Manufacturing date : 12/2014
---------------------------------------------------------------
CSD Info
CSD : D02701320F5903FFF6DBFFEF8E40400D
CSD structure : CSD version No. 1.2
SPEC version : 4.1, 4.2, 4.3, 4.4, 4.41, 4.5,
4.51, 5.0, 5.01, 5.1
Data read access time1: 15 ms
TRAN speed : 26 MHz
READ block length : 512 Bytes
WP group enable : YES
PERM_WRITE_PROTECT : NO
TMP_WRITE_PROTECT : NO
---------------------------------------------------------------
EXTCSD Info
Revision 1.7 (for MMC v5.0, v5.01)
Erase block size : 512 Kbytes
Boot1 size : 4096 Kbytes
Boot2 size : 4096 Kbytes
RPMB size : 4096 Kbytes
Partition config : (0x00) 00000000
Boot partition enable : Device not boot enabled (default)
(Bus width = 1Bit)
Boot ACK : No boot acknowledge sent (default)
Boot bus conditions : (0x00) 00000000
Boot bus width : x1 (sdr) or x4 (ddr) bus width in boot operation mode (default)
Reset boot bus conditions : Reset bus width to x1, single data rate and backward compatible timings after boot operation (default)
Boot mode : Use single data rate + backward compatible timings in boot operation (default)
RST_n function : (0x00) RST_n signal is temporary disabled (default)
Partitioning support : Device supports partitioning features
Enhanced attribute : Device can have enhanced technological features in partitions and user data area.
Max enhanced data size: 7692288 Kbytes
Partitions attribute : 0x0
Part setting completed: 0x0
GP partition 1 size : 0 b
GP partition 2 size : 0 b
GP partition 3 size : 0 b
GP partition 4 size : 0 b
Enhanced area size : (0x0) 0 b
Enhanced area start : (0x0) 0 b
---------------------------------------------------------------Searching Android build info...
Not found
---------------------------------------------------------------
Backup EXT_CSD saved to file C:/Program Files/Medusa Pro Software/EXT_CSD Backups/R311MB_23_02_2019_19_43_13.bin.
Connect successful.
---------------------------------------------------------------
SW: 1.7.5; FW: 1.24.
Disconnected.
Please disconnect battery and USB cable.
Model Settings:
Interface : eMMC
Voltage : 1.8V
Bus Mode : 1 bit
Bus speed : 20 MHz
Connecting...
Device : Samsung eMMC R311MB
Page size : 512 B
Block size : 512 B
Block count : 30777344
Size : 14.68 GB (15028.00 MB)
---------------------------------------------------------------
CID Info
CID : 150100523331314D42006CA3D6B7C1AD
Manufacturer ID : 0X15
Device/BGA : BGA (Discrete embedded)
OEM/Application ID : 0X00
Product name : R311MB
Product revision : 0.0
Product serial number : (hex) 6CA3D6B7
Manufacturing date : 12/2014
---------------------------------------------------------------
CSD Info
CSD : D02701320F5903FFF6DBFFEF8E40400D
CSD structure : CSD version No. 1.2
SPEC version : 4.1, 4.2, 4.3, 4.4, 4.41, 4.5,
4.51, 5.0, 5.01, 5.1
Data read access time1: 15 ms
TRAN speed : 26 MHz
READ block length : 512 Bytes
WP group enable : YES
PERM_WRITE_PROTECT : NO
TMP_WRITE_PROTECT : NO
---------------------------------------------------------------
EXTCSD Info
Revision 1.7 (for MMC v5.0, v5.01)
Erase block size : 512 Kbytes
Boot1 size : 4096 Kbytes
Boot2 size : 4096 Kbytes
RPMB size : 4096 Kbytes
Partition config : (0x00) 00000000
Boot partition enable : Device not boot enabled (default)
(Bus width = 1Bit)
Boot ACK : No boot acknowledge sent (default)
Boot bus conditions : (0x00) 00000000
Boot bus width : x1 (sdr) or x4 (ddr) bus width in boot operation mode (default)
Reset boot bus conditions : Reset bus width to x1, single data rate and backward compatible timings after boot operation (default)
Boot mode : Use single data rate + backward compatible timings in boot operation (default)
RST_n function : (0x00) RST_n signal is temporary disabled (default)
Partitioning support : Device supports partitioning features
Enhanced attribute : Device can have enhanced technological features in partitions and user data area.
Max enhanced data size: 7692288 Kbytes
Partitions attribute : 0x0
Part setting completed: 0x0
GP partition 1 size : 0 b
GP partition 2 size : 0 b
GP partition 3 size : 0 b
GP partition 4 size : 0 b
Enhanced area size : (0x0) 0 b
Enhanced area start : (0x0) 0 b
---------------------------------------------------------------Searching Android build info...
Not found
---------------------------------------------------------------
Backup EXT_CSD saved to file C:/Program Files/Medusa Pro Software/EXT_CSD Backups/R311MB_23_02_2019_19_43_21.bin.
Connect successful.
---------------------------------------------------------------
SW: 1.7.5; FW: 1.24.
Selected pit file: C:/Users/AFIFA/Downloads/Compressed/J5XNLTE_EUR_OPEN.pit
Open file "C:/Users/AFIFA/Desktop/SM-J510F_1_20180528181601_e2oh79bl4k/J510FXXU2BRE2_J510FOJV2BRD1_J510FXXU2BRE1_HOME.tar .md5".
Writing MBR...Done.
Writing primary GPT...Done.
Writing secondary GPT...Done.
Writing PIT
Write data verification is enabled.
Writing. Please wait...
Writing partition APNHLOS... Done.
Writing partition MODEM... Done.
Writing partition SBL1... Done.
Writing partition ABOOT... Done.
Writing partition RPM... Done.
Writing partition QSEE... Done.
Writing partition QHEE... Done.
Writing partition BOOT... Done.
Writing partition RECOVERY... Done.
Writing is finished.
SW: 1.7.5; FW: 1.24.
Disconnected.
Please disconnect battery and USB cable.
Model Settings:
Interface : eMMC
Voltage : 1.8V
Bus Mode : 1 bit
Bus speed : 20 MHz
Connecting...
Device : Samsung eMMC R311MB
Page size : 512 B
Block size : 512 B
Block count : 30777344
Size : 14.68 GB (15028.00 MB)
---------------------------------------------------------------
CID Info
CID : 150100523331314D42006CA3D6B7C1AD
Manufacturer ID : 0X15
Device/BGA : BGA (Discrete embedded)
OEM/Application ID : 0X00
Product name : R311MB
Product revision : 0.0
Product serial number : (hex) 6CA3D6B7
Manufacturing date : 12/2014
---------------------------------------------------------------
CSD Info
CSD : D02701320F5903FFF6DBFFEF8E40400D
CSD structure : CSD version No. 1.2
SPEC version : 4.1, 4.2, 4.3, 4.4, 4.41, 4.5,
4.51, 5.0, 5.01, 5.1
Data read access time1: 15 ms
TRAN speed : 26 MHz
READ block length : 512 Bytes
WP group enable : YES
PERM_WRITE_PROTECT : NO
TMP_WRITE_PROTECT : NO
---------------------------------------------------------------
EXTCSD Info
Revision 1.7 (for MMC v5.0, v5.01)
Erase block size : 512 Kbytes
Boot1 size : 4096 Kbytes
Boot2 size : 4096 Kbytes
RPMB size : 4096 Kbytes
Partition config : (0x00) 00000000
Boot partition enable : Device not boot enabled (default)
(Bus width = 1Bit)
Boot ACK : No boot acknowledge sent (default)
Boot bus conditions : (0x00) 00000000
Boot bus width : x1 (sdr) or x4 (ddr) bus width in boot operation mode (default)
Reset boot bus conditions : Reset bus width to x1, single data rate and backward compatible timings after boot operation (default)
Boot mode : Use single data rate + backward compatible timings in boot operation (default)
RST_n function : (0x00) RST_n signal is temporary disabled (default)
Partitioning support : Device supports partitioning features
Enhanced attribute : Device can have enhanced technological features in partitions and user data area.
Max enhanced data size: 7692288 Kbytes
Partitions attribute : 0x0
Part setting completed: 0x0
GP partition 1 size : 0 b
GP partition 2 size : 0 b
GP partition 3 size : 0 b
GP partition 4 size : 0 b
Enhanced area size : (0x0) 0 b
Enhanced area start : (0x0) 0 b
---------------------------------------------------------------Searching Android build info...
Not found
---------------------------------------------------------------
Backup EXT_CSD saved to file C:/Program Files/Medusa Pro Software/EXT_CSD Backups/R311MB_23_02_2019_19_45_36.bin.
Connect successful.
---------------------------------------------------------------
SW: 1.7.5; FW: 1.24.
P00: GPT (00000000, 00002000) 4 MB
P01: apnhlos (00002000, 00007800) 15 MB
P02: modem (00009800, 0001C980) 57.19 MB
P03: sbl1 (00026180, 00000400) 512 KB
P04: ddr (00026580, 00000040) 32 KB
P05: aboot (000265C0, 00001000) 2048 KB
P06: rpm (000275C0, 00000400) 512 KB
P07: qsee (000279C0, 00000600) 768 KB
P08: qhee (00027FC0, 00000400) 512 KB
P09: fsg (000283C0, 00001800) 3072 KB
P10: sec (00029BC0, 00000020) 16 KB
P11: pad (00029BE0, 00005420) 10.52 MB
P12: param (0002F000, 00005000) 10 MB
P13: efs (00034000, 00007000) 14 MB
P14: modemst1 (0003B000, 00001800) 3072 KB
P15: modemst2 (0003C800, 00001800) 3072 KB
P16: boot (0003E000, 00006800) 13 MB
P17: recovery (00044800, 00007800) 15 MB
P18: fota (0004C000, 00005FFA) 12 MB
P19: backup (00051FFA, 000037EE) 6.991 MB
P20: fsc (000557E8, 00001800) 3072 KB
P21: ssd (00056FE8, 00000010) 8 KB
P22: persist (00056FF8, 00004000) 8 MB
P23: persistent (0005AFF8, 00000800) 1024 KB
P24: persdata (0005B7F8, 00004808) 9.004 MB
P25: system (00060000, 005DC000) 3000 MB
P26: cache (0063C000, 00064000) 200 MB
P27: hidden (006A0000, 0001E000) 60 MB
P28: userdata (006BE000, 0169A000) 11.3 GB
Q313MB to R311MB
Model Settings:
Interface : eMMC
Voltage : 1.8V
Bus Mode : 1 bit
Bus speed : Auto
Connecting...
Device : Samsung eMMC R311MB
Page size : 512 B
Block size : 512 B
Block count : 30777344
Size : 14.68 GB (15028.00 MB)
---------------------------------------------------------------
CID Info
CID : 150100523331314D42006CA3D6B7C1AD
Manufacturer ID : 0X15
Device/BGA : BGA (Discrete embedded)
OEM/Application ID : 0X00
Product name : R311MB
Product revision : 0.0
Product serial number : (hex) 6CA3D6B7
Manufacturing date : 12/2014
---------------------------------------------------------------
CSD Info
CSD : D02701320F5903FFF6DBFFEF8E40400D
CSD structure : CSD version No. 1.2
SPEC version : 4.1, 4.2, 4.3, 4.4, 4.41, 4.5,
4.51, 5.0, 5.01, 5.1
Data read access time1: 15 ms
TRAN speed : 26 MHz
READ block length : 512 Bytes
WP group enable : YES
PERM_WRITE_PROTECT : NO
TMP_WRITE_PROTECT : NO
---------------------------------------------------------------
EXTCSD Info
Revision 1.7 (for MMC v5.0, v5.01)
Erase block size : 512 Kbytes
Boot1 size : 4096 Kbytes
Boot2 size : 4096 Kbytes
RPMB size : 4096 Kbytes
Partition config : (0x00) 00000000
Boot partition enable : Device not boot enabled (default)
(Bus width = 1Bit)
Boot ACK : No boot acknowledge sent (default)
Boot bus conditions : (0x00) 00000000
Boot bus width : x1 (sdr) or x4 (ddr) bus width in boot operation mode (default)
Reset boot bus conditions : Reset bus width to x1, single data rate and backward compatible timings after boot operation (default)
Boot mode : Use single data rate + backward compatible timings in boot operation (default)
RST_n function : (0x00) RST_n signal is temporary disabled (default)
Partitioning support : Device supports partitioning features
Enhanced attribute : Device can have enhanced technological features in partitions and user data area.
Max enhanced data size: 7692288 Kbytes
Partitions attribute : 0x0
Part setting completed: 0x0
GP partition 1 size : 0 b
GP partition 2 size : 0 b
GP partition 3 size : 0 b
GP partition 4 size : 0 b
Enhanced area size : (0x0) 0 b
Enhanced area start : (0x0) 0 b
---------------------------------------------------------------Searching Android build info...
Not found
---------------------------------------------------------------
Backup EXT_CSD saved to file C:/Program Files/Medusa Pro Software/EXT_CSD Backups/R311MB_23_02_2019_19_43_13.bin.
Connect successful.
---------------------------------------------------------------
SW: 1.7.5; FW: 1.24.
Disconnected.
Please disconnect battery and USB cable.
Model Settings:
Interface : eMMC
Voltage : 1.8V
Bus Mode : 1 bit
Bus speed : 20 MHz
Connecting...
Device : Samsung eMMC R311MB
Page size : 512 B
Block size : 512 B
Block count : 30777344
Size : 14.68 GB (15028.00 MB)
---------------------------------------------------------------
CID Info
CID : 150100523331314D42006CA3D6B7C1AD
Manufacturer ID : 0X15
Device/BGA : BGA (Discrete embedded)
OEM/Application ID : 0X00
Product name : R311MB
Product revision : 0.0
Product serial number : (hex) 6CA3D6B7
Manufacturing date : 12/2014
---------------------------------------------------------------
CSD Info
CSD : D02701320F5903FFF6DBFFEF8E40400D
CSD structure : CSD version No. 1.2
SPEC version : 4.1, 4.2, 4.3, 4.4, 4.41, 4.5,
4.51, 5.0, 5.01, 5.1
Data read access time1: 15 ms
TRAN speed : 26 MHz
READ block length : 512 Bytes
WP group enable : YES
PERM_WRITE_PROTECT : NO
TMP_WRITE_PROTECT : NO
---------------------------------------------------------------
EXTCSD Info
Revision 1.7 (for MMC v5.0, v5.01)
Erase block size : 512 Kbytes
Boot1 size : 4096 Kbytes
Boot2 size : 4096 Kbytes
RPMB size : 4096 Kbytes
Partition config : (0x00) 00000000
Boot partition enable : Device not boot enabled (default)
(Bus width = 1Bit)
Boot ACK : No boot acknowledge sent (default)
Boot bus conditions : (0x00) 00000000
Boot bus width : x1 (sdr) or x4 (ddr) bus width in boot operation mode (default)
Reset boot bus conditions : Reset bus width to x1, single data rate and backward compatible timings after boot operation (default)
Boot mode : Use single data rate + backward compatible timings in boot operation (default)
RST_n function : (0x00) RST_n signal is temporary disabled (default)
Partitioning support : Device supports partitioning features
Enhanced attribute : Device can have enhanced technological features in partitions and user data area.
Max enhanced data size: 7692288 Kbytes
Partitions attribute : 0x0
Part setting completed: 0x0
GP partition 1 size : 0 b
GP partition 2 size : 0 b
GP partition 3 size : 0 b
GP partition 4 size : 0 b
Enhanced area size : (0x0) 0 b
Enhanced area start : (0x0) 0 b
---------------------------------------------------------------Searching Android build info...
Not found
---------------------------------------------------------------
Backup EXT_CSD saved to file C:/Program Files/Medusa Pro Software/EXT_CSD Backups/R311MB_23_02_2019_19_43_21.bin.
Connect successful.
---------------------------------------------------------------
SW: 1.7.5; FW: 1.24.
Selected pit file: C:/Users/AFIFA/Downloads/Compressed/J5XNLTE_EUR_OPEN.pit
Open file "C:/Users/AFIFA/Desktop/SM-J510F_1_20180528181601_e2oh79bl4k/J510FXXU2BRE2_J510FOJV2BRD1_J510FXXU2BRE1_HOME.tar .md5".
Writing MBR...Done.
Writing primary GPT...Done.
Writing secondary GPT...Done.
Writing PIT
Write data verification is enabled.
Writing. Please wait...
Writing partition APNHLOS... Done.
Writing partition MODEM... Done.
Writing partition SBL1... Done.
Writing partition ABOOT... Done.
Writing partition RPM... Done.
Writing partition QSEE... Done.
Writing partition QHEE... Done.
Writing partition BOOT... Done.
Writing partition RECOVERY... Done.
Writing is finished.
SW: 1.7.5; FW: 1.24.
Disconnected.
Please disconnect battery and USB cable.
Model Settings:
Interface : eMMC
Voltage : 1.8V
Bus Mode : 1 bit
Bus speed : 20 MHz
Connecting...
Device : Samsung eMMC R311MB
Page size : 512 B
Block size : 512 B
Block count : 30777344
Size : 14.68 GB (15028.00 MB)
---------------------------------------------------------------
CID Info
CID : 150100523331314D42006CA3D6B7C1AD
Manufacturer ID : 0X15
Device/BGA : BGA (Discrete embedded)
OEM/Application ID : 0X00
Product name : R311MB
Product revision : 0.0
Product serial number : (hex) 6CA3D6B7
Manufacturing date : 12/2014
---------------------------------------------------------------
CSD Info
CSD : D02701320F5903FFF6DBFFEF8E40400D
CSD structure : CSD version No. 1.2
SPEC version : 4.1, 4.2, 4.3, 4.4, 4.41, 4.5,
4.51, 5.0, 5.01, 5.1
Data read access time1: 15 ms
TRAN speed : 26 MHz
READ block length : 512 Bytes
WP group enable : YES
PERM_WRITE_PROTECT : NO
TMP_WRITE_PROTECT : NO
---------------------------------------------------------------
EXTCSD Info
Revision 1.7 (for MMC v5.0, v5.01)
Erase block size : 512 Kbytes
Boot1 size : 4096 Kbytes
Boot2 size : 4096 Kbytes
RPMB size : 4096 Kbytes
Partition config : (0x00) 00000000
Boot partition enable : Device not boot enabled (default)
(Bus width = 1Bit)
Boot ACK : No boot acknowledge sent (default)
Boot bus conditions : (0x00) 00000000
Boot bus width : x1 (sdr) or x4 (ddr) bus width in boot operation mode (default)
Reset boot bus conditions : Reset bus width to x1, single data rate and backward compatible timings after boot operation (default)
Boot mode : Use single data rate + backward compatible timings in boot operation (default)
RST_n function : (0x00) RST_n signal is temporary disabled (default)
Partitioning support : Device supports partitioning features
Enhanced attribute : Device can have enhanced technological features in partitions and user data area.
Max enhanced data size: 7692288 Kbytes
Partitions attribute : 0x0
Part setting completed: 0x0
GP partition 1 size : 0 b
GP partition 2 size : 0 b
GP partition 3 size : 0 b
GP partition 4 size : 0 b
Enhanced area size : (0x0) 0 b
Enhanced area start : (0x0) 0 b
---------------------------------------------------------------Searching Android build info...
Not found
---------------------------------------------------------------
Backup EXT_CSD saved to file C:/Program Files/Medusa Pro Software/EXT_CSD Backups/R311MB_23_02_2019_19_45_36.bin.
Connect successful.
---------------------------------------------------------------
SW: 1.7.5; FW: 1.24.
P00: GPT (00000000, 00002000) 4 MB
P01: apnhlos (00002000, 00007800) 15 MB
P02: modem (00009800, 0001C980) 57.19 MB
P03: sbl1 (00026180, 00000400) 512 KB
P04: ddr (00026580, 00000040) 32 KB
P05: aboot (000265C0, 00001000) 2048 KB
P06: rpm (000275C0, 00000400) 512 KB
P07: qsee (000279C0, 00000600) 768 KB
P08: qhee (00027FC0, 00000400) 512 KB
P09: fsg (000283C0, 00001800) 3072 KB
P10: sec (00029BC0, 00000020) 16 KB
P11: pad (00029BE0, 00005420) 10.52 MB
P12: param (0002F000, 00005000) 10 MB
P13: efs (00034000, 00007000) 14 MB
P14: modemst1 (0003B000, 00001800) 3072 KB
P15: modemst2 (0003C800, 00001800) 3072 KB
P16: boot (0003E000, 00006800) 13 MB
P17: recovery (00044800, 00007800) 15 MB
P18: fota (0004C000, 00005FFA) 12 MB
P19: backup (00051FFA, 000037EE) 6.991 MB
P20: fsc (000557E8, 00001800) 3072 KB
P21: ssd (00056FE8, 00000010) 8 KB
P22: persist (00056FF8, 00004000) 8 MB
P23: persistent (0005AFF8, 00000800) 1024 KB
P24: persdata (0005B7F8, 00004808) 9.004 MB
P25: system (00060000, 005DC000) 3000 MB
P26: cache (0063C000, 00064000) 200 MB
P27: hidden (006A0000, 0001E000) 60 MB
P28: userdata (006BE000, 0169A000) 11.3 GB
